Geotechnical Engineering Lab
Overview
The purpose of the laboratory is to study the various types of tests used for soil testing. Each experiment of soil testing is presented with brief introduction covering the important details of the experiment, the theory and the applications of the same. With the help of these Students can perform and analyze the properties and strength of the soil by using testing machines like direct shear testing machine, consolidation, unconfined, triaxial testing machine, Compaction and relative density. The total area of the lab is 175 sq. Meters.
Laboratory Area: 171 Sq. Mts
Laboratory Expenditure: Rs.7,92,589
Major Equipments
| Equipment Name | Specifications |
|---|---|
| Unconfined compression tester-Motorized | IS Standards: proving ring, deformation dial gauge, conical seating Loading frame of capacity- 2t Proving ring of 0.01kg sensitivity. |
| Triaxial test apparatus | IS Standards: proving ring, high pressure cylindrical cell Split mould 3.8cm dia and 7.6cm height. Triaxial test cell with base. |
| Swell pressure test apparatus | Loading unit, hand operated 5 tons capacity. Proving Ring 250 kg. Capacity with calibration chart and carrying case. Dial gauge 0.01 mm x 25 mm. One Gun Metal mould 1000ml capacity. |
| Field CBR test apparatus | Mechanical screw loading jack, 10,000 kg. Capacity with U-bracket and swivel head. Penetration piston, 50 mm dia. Extension rods consisting of 2 lengths 5 cm. 2 lengths 10 cm., 1 length 30 cm.,1 length 50 cm., and 1 length 100 cm., used as spacers between the proving ring and penetration piston. |
| Relative density apparatus | Specimen mould: 250 ml; Inner diameter 5 cm; Height 12.7 cm Rammer: Speed 32 beats/min; Weight 1.25kg; Diameter 5cm; Drop height 15cm Timer range: 0-15 minute, Power supply: 220V 50Hz, Motor power: 12 Weight: 40 kg. |
| Direct shear Test apparatus | Comprising Direct Shear box in two halves for a square specimen size 60 x 60 x 25 mm one pair of plain gripper plates, one pair of perforated gripper plates, one pair of porous stones, and one top loading pad. |
| Consolidation apparatus | The standard outfit comprises of the following items. Loading unit, maximum capacity 20 kg/cm sq. having a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:1, the whole assembly being mounted on a sturdy steel frame stand. |

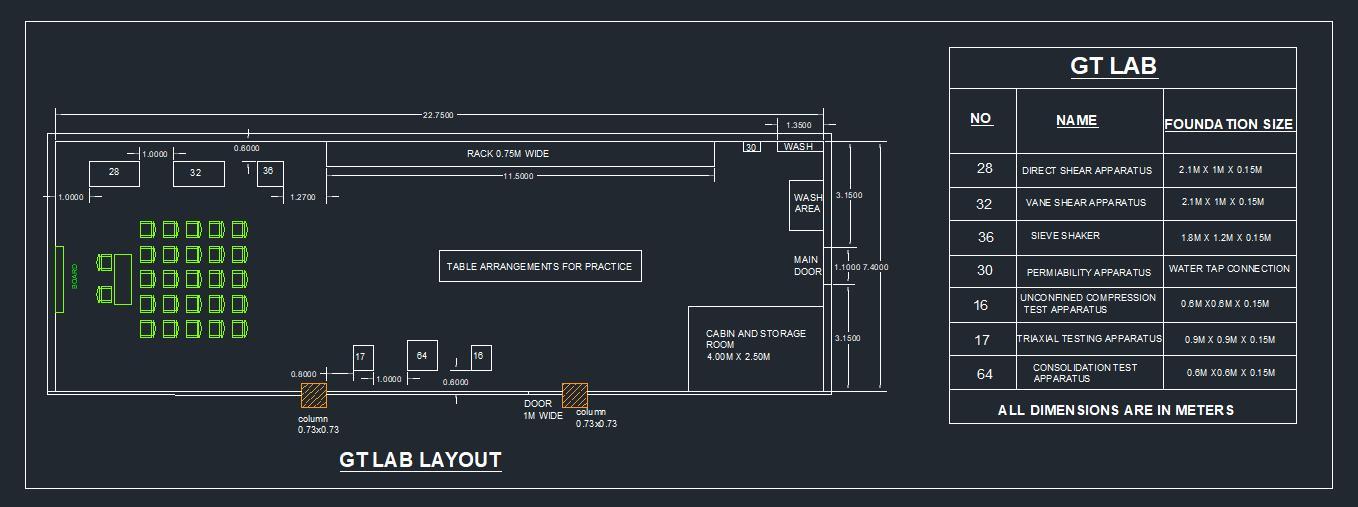

Laboratory Layout
